Zender Stern (Star)

Post by fasani » Thu Jun 10, 2021 7:39 pm

Juli 2013 i started a topic on our .nl site.
1-2 years earlier i bought a set 17" Zender Stern wheels, those would perfect fit for my white 164 Zender version (in the first place my black QV).
After hitting the sidewalk the project started.
My white lady has already several Zender parts, now it's time to give her the Zender highheels.

The reason i had to repair the rims.


The first rim i did about 6-7 years ago, it ended somewhere in a corner. The past weeks i got inspired again to do something with the 164's and picked up the rims.
Hereby a picture view.

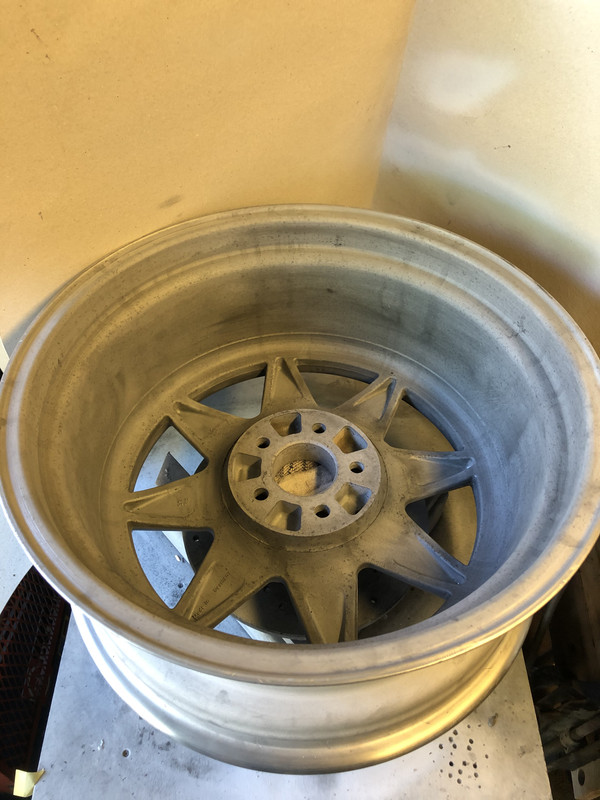

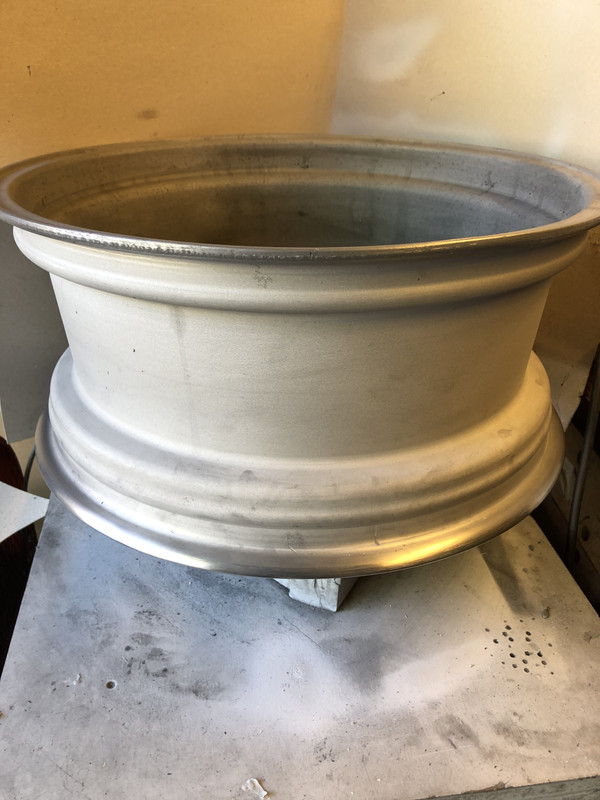

The paint has been chemical removed and glass blasted.


4x 36 bolts needed to be drilled and taken out. it took some time but when i put the new ones in....i forget it.





Sanding some little damage with 120, 180, 240, 320, 400 and 600 waterproof.








]Image

After waterproof sanding with 600 i used sisal-, cotton- and flannel polishing wheels with different polish cream.

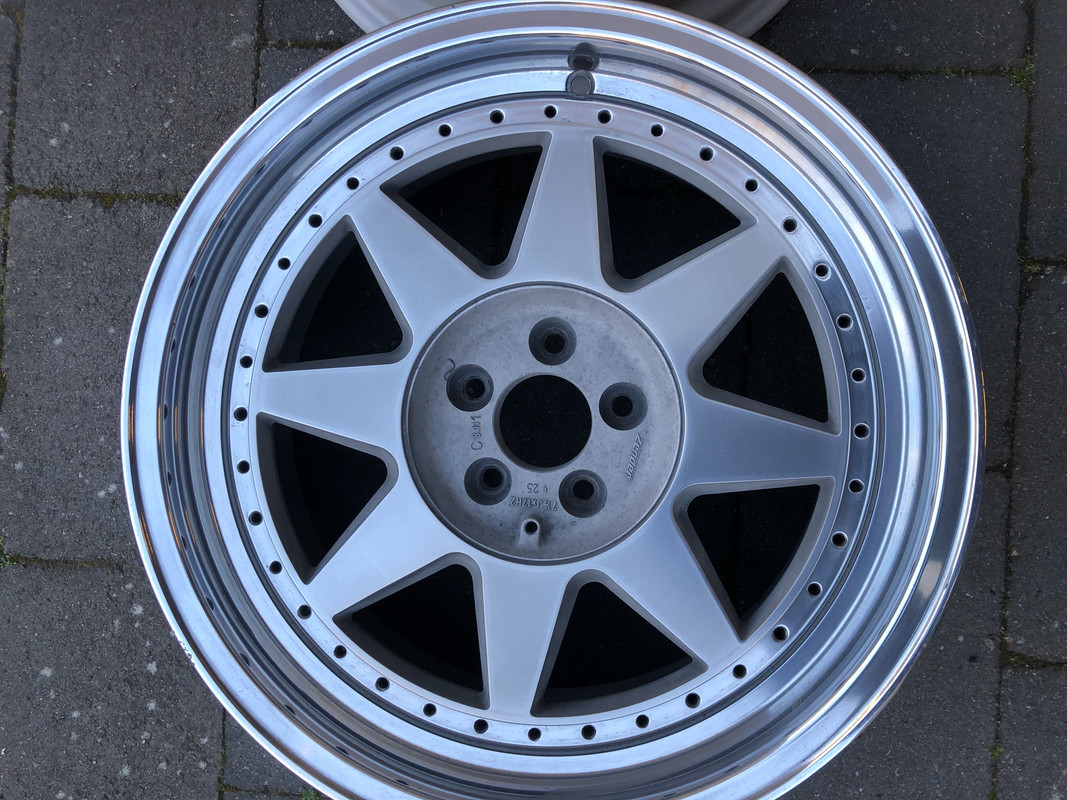

The result.

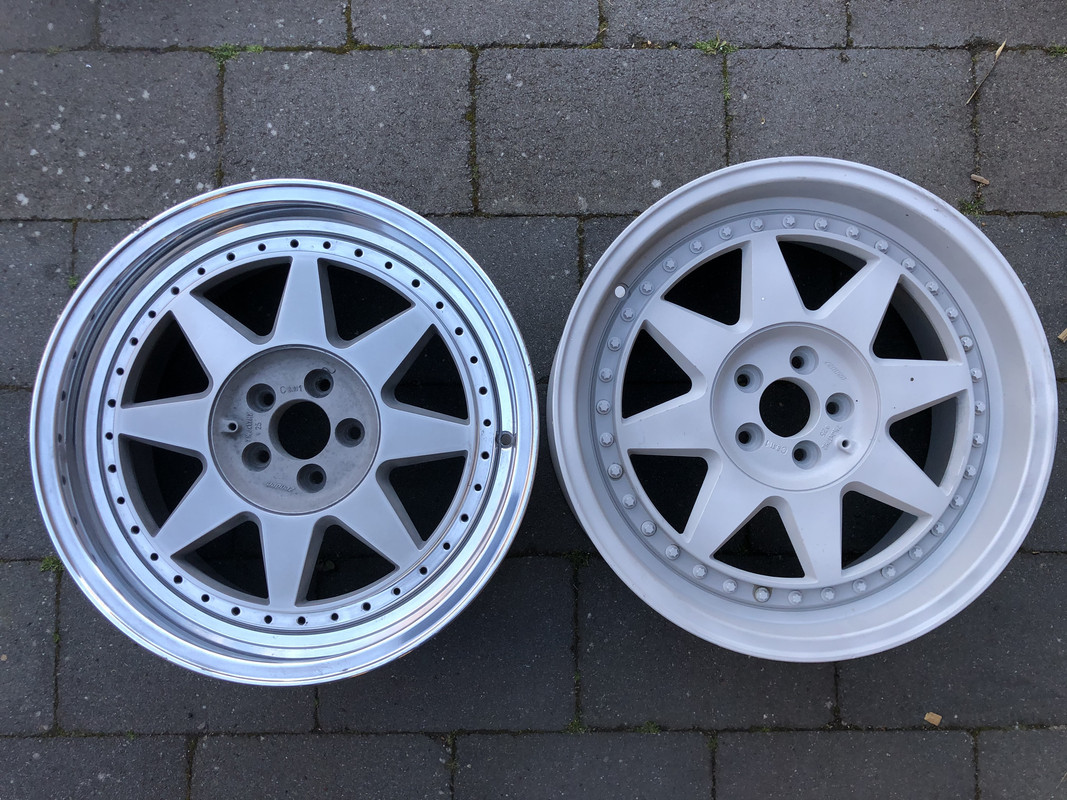

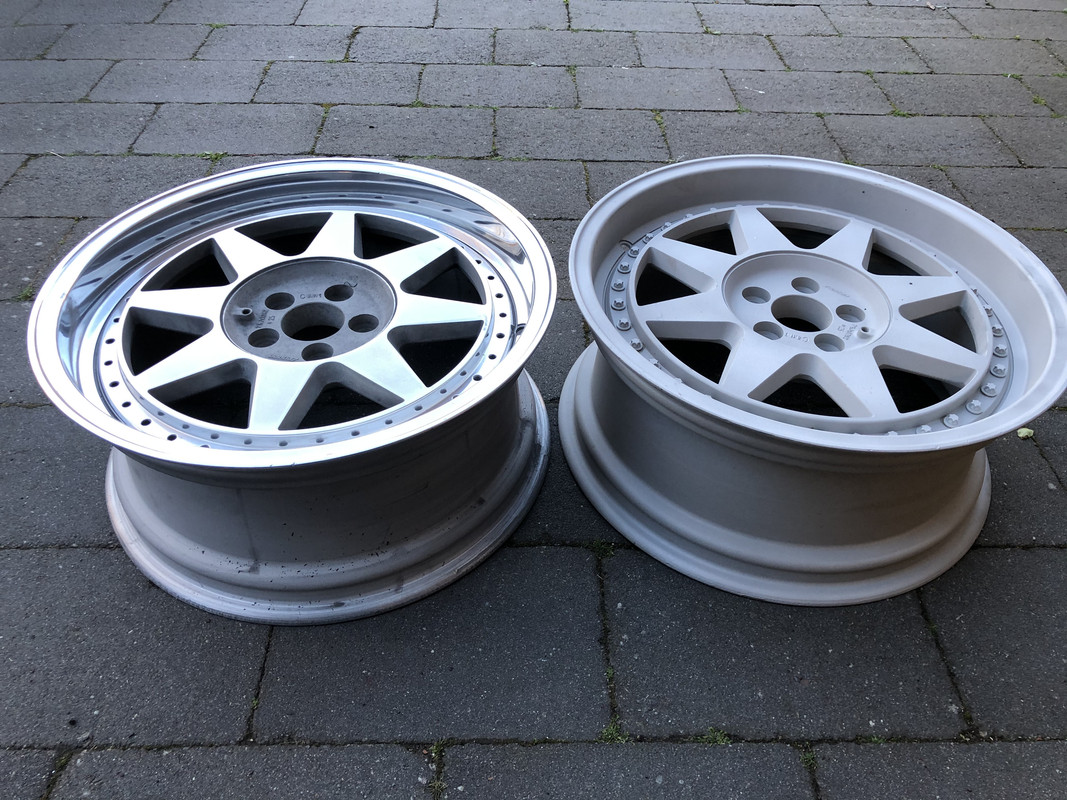

before & after:

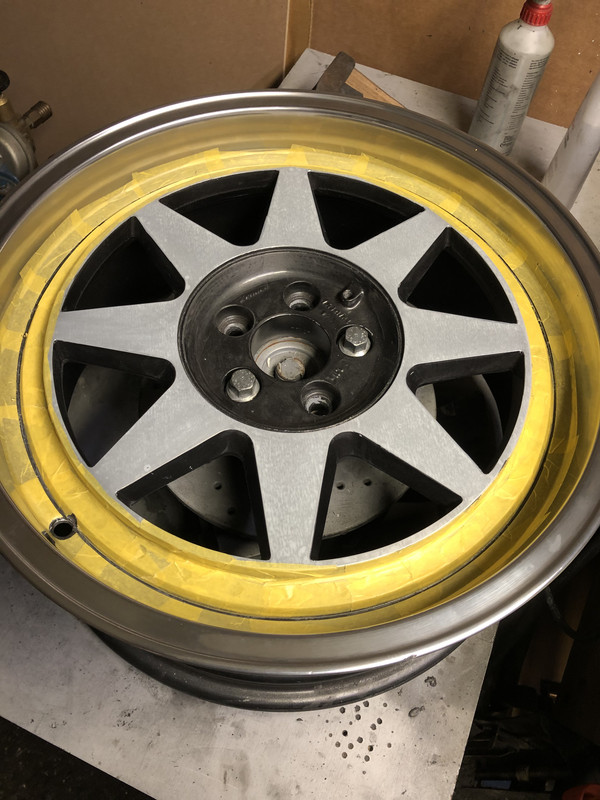

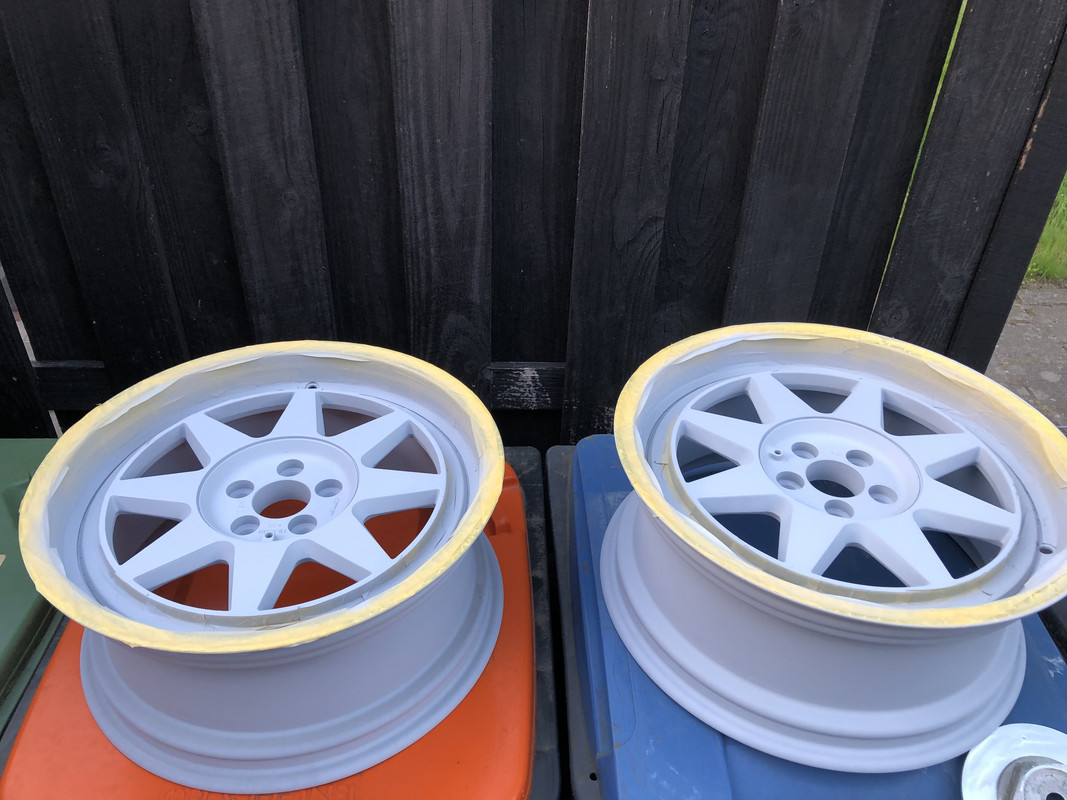

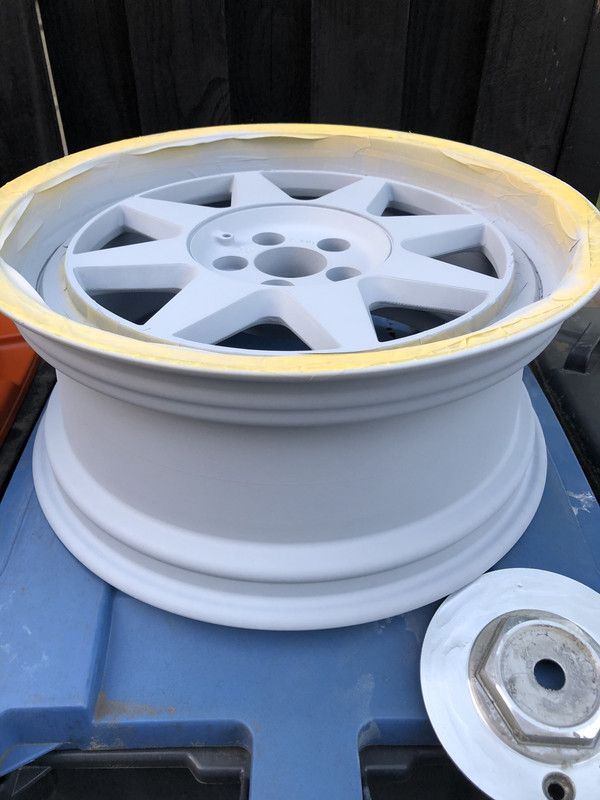

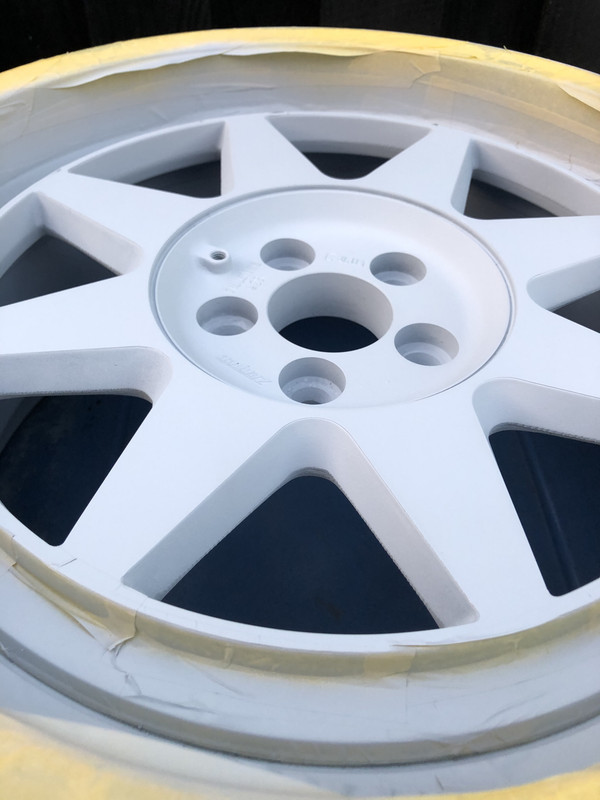

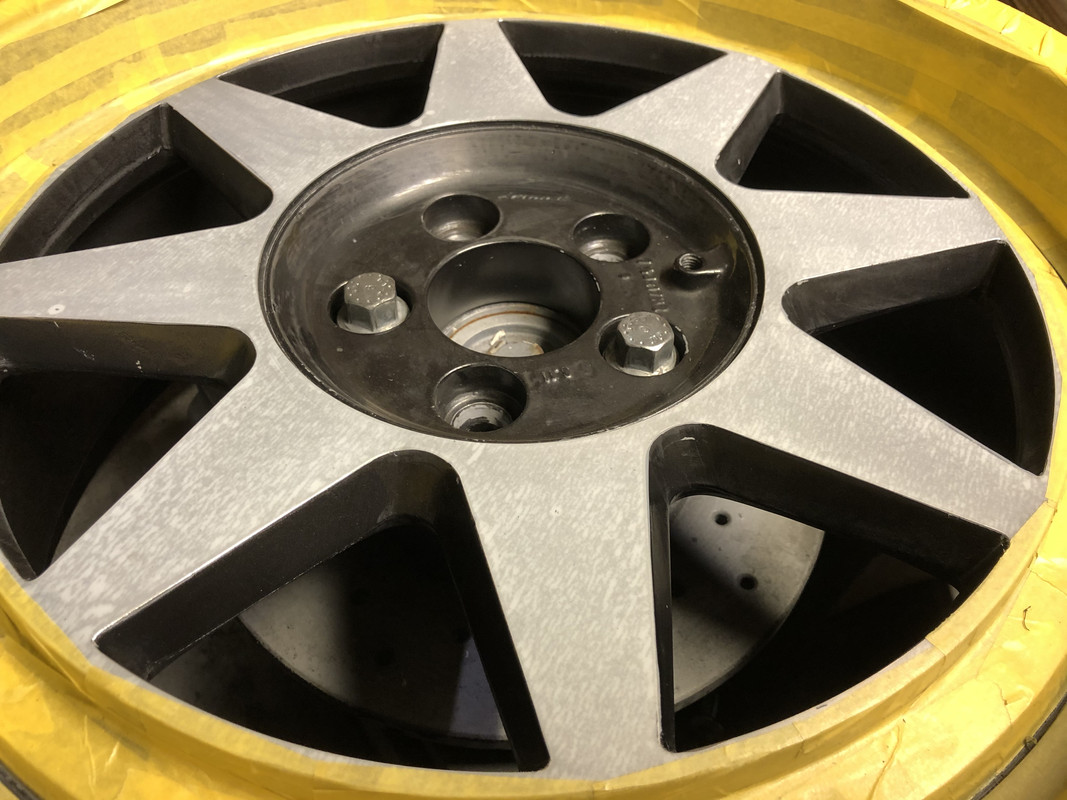

Time to cover the parts so i can add the primer.

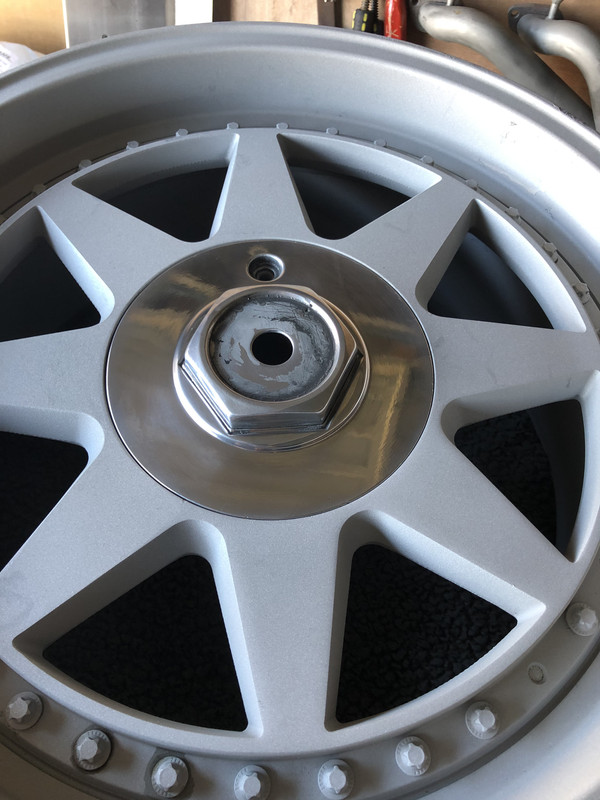

The difference between the blasted rim and polished wheelcap.


To be continued:
The paint will be filled in spray cans to paint the inside and spokes.
1993 24v QV Nero / 1993 24v QV Rosso / 1990 12v QV Nero

Alfamuppet
Posts: 113
Joined: Thu Mar 06, 2014 2:39 pm
Location: Weston Super Mare

Re: Zender Stern (Star)

Post by Alfamuppet » Sat Jun 12, 2021 8:10 am

Looking very good
Alfa 164 Q4 Proteo Red

fasani
QV 24V owner
Posts: 661
Joined: Thu Jan 07, 2010 12:09 am
Location: Assen

Re: Zender Stern (Star)

Post by fasani » Sat Jun 12, 2021 8:29 pm

thank you.
1993 24v QV Nero / 1993 24v QV Rosso / 1990 12v QV Nero

MikeCZ
Posts: 143
Joined: Sat Nov 19, 2016 10:59 am
Location: Poland, near Katowice
Contact:

Re: Zender Stern (Star)

Post by MikeCZ » Sun Jun 13, 2021 4:32 pm

Nice job indeed, I always preffered those weels instead of Zender Milano for 164 :)
Alfa Romeo Giulietta 2.0JTDm 2011, Rover Mini 998 1991
Ex: Alfa Romeo 164 2.0 V6TB 1995, Honda Civic VIII 1.8 2010, Seat Leon ST FR1.4 TSI 2017, Alfa Romeo 159 2.4 JTDm 2007 berlina, Fiat Stilo 1.4 MW 2007
